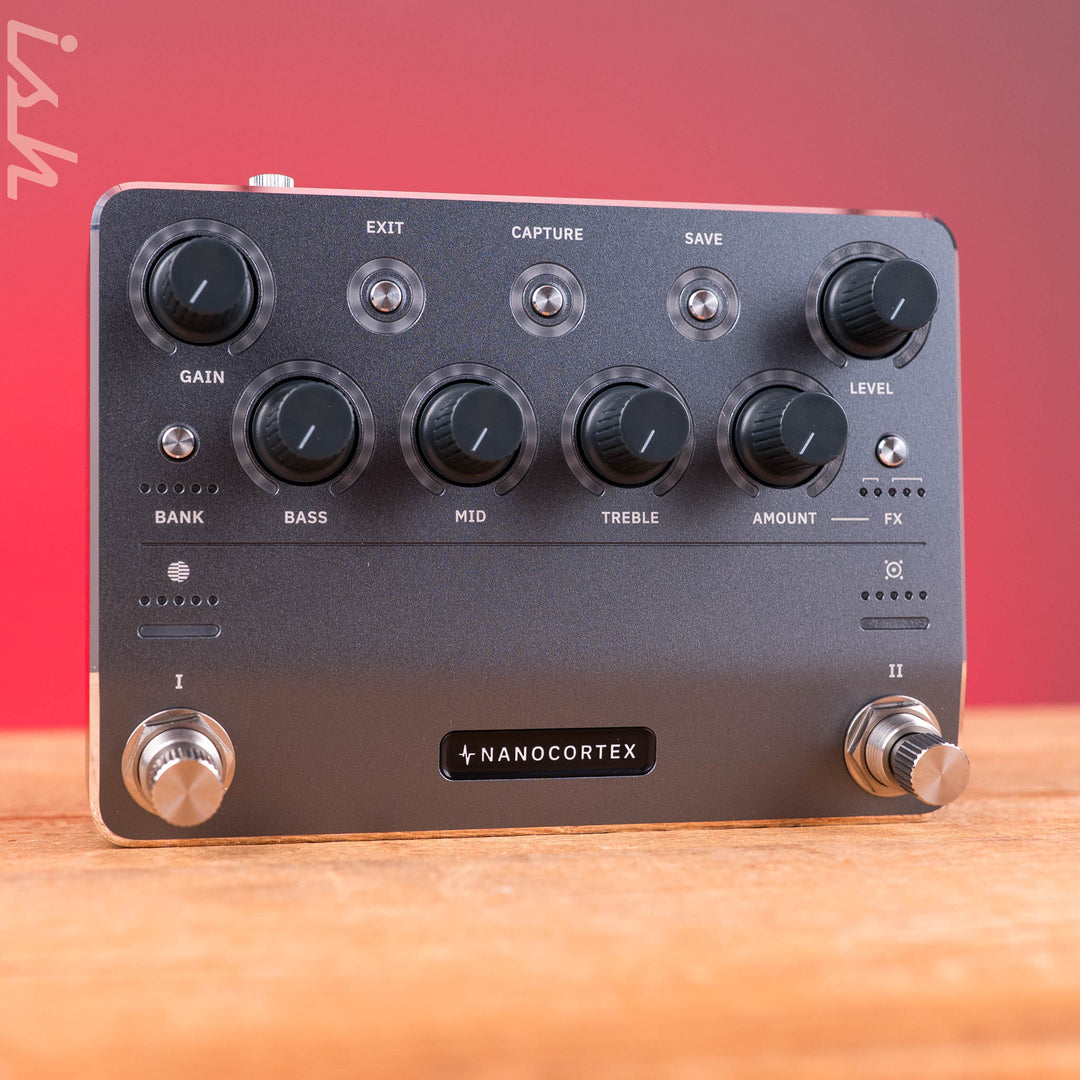

digital pedal guitar Neural DSP Nano Cortex Digital Effects Processor and Profiling Pedal

digital pedal guitar Neural DSP Nano Cortex Digital Effects Processor and Profiling PedalNeural DSP Nano Cortex Digital Effects Processor and Profiling Pedal DESCRIPTION Nano Cortex delivers studio grade sound, a fully customizable signal chain, a complete suite of effects, and the revolutionary Neural Capture technology all in a compact, ultra portable pedal. Whether youre on stage, in the studio, or anywhere in between, your perfect tone is always within reach. Since its release, Neural Capture has transformed how players approach tone,

Neural DSP Nano Cortex Digital Effects Processor and Profiling Pedal

DESCRIPTION

SPECS

Dimensions: 14.4 × 10.3 × 6.2 cm (5.6 × 4.0 × 2.4 in)

Weight: 1.36 lbs

Processor: SHARC DSP (2 GHz)

Inputs / Outputs

• ¼″ instrument input (1 MΩ)

• XLR/¼″ combo input with +26 dB boost option

• Dual ¼″ TRS main outputs (balanced/unbalanced)

• 3.5 mm headphone out with volume control

• USB-C (audio interface, 24-bit / 48 kHz, 4 in / 3 out)

• TRS MIDI / expression input

• Bluetooth for app control

Power

• 9–12 V DC, 600 mA (center negative)

• USB-C (5 V, ≥1.5 A)

Storage & Presets

• 256 Neural Capture slots

• 256 IR slots (10 premium preloaded)

• 64 user presets

Effects & Signal Chain

• Fixed layout with 7 blocks: input gate, 2 pre-FX, capture, IR loader, 3 post-FX

• 50+ effects (drives, compression, EQ, modulation, delay, reverb, utility)

• Global cab bypass option

Library

• 20 guitar amp captures, 5 bass amp captures, drive pedals

• 8 guitar cabs + 2 bass cabs with mic models and positions

Workflow & App

• Works standalone (no app required)

• Amp/pedal captures take ~5 minutes on-device

• Cortex Cloud app via Bluetooth for presets, captures, firmware, and sharing
